Precision Composite Curing Ovens
For annealing, preheating, baking or any other heat processing where overhead handling equipment is used.
PRODUCT OVERVIEW
This range of the Ovens are built to the highest standards. They are fully-featured professional industrial curing ovens.
As standard, the Composite Curing Oven range offers a heavy-duty stainless steel interior, increased accuracies, quicker responding, and continuous operation at 200°C.
The panels of the oven are made using thermally isolated steel skins with a high-performance insulated core which is based on the ceramic fiber. This means that the thermal performance of the oven is highly efficient.
They feature our latest touchscreen control system which offers intuitive control designed for industrial ovens.
The composite ovens are specifically tailored for composite use, including curing or post-curing laminates, prepregs, thermoplastics, castings and moulds.
TOP-LOADING OVENS MODEL SPECIFICATIONS
| Model | Workspace | Outside Dimensions (W×H×D mm) |
Temp, °C | Max power consumption |
Fan heating, power, 2 pcs |
Max Heating Rate, min |
Mains supply voltage |
Weight, kg |
Installation Space (W×H×D mm) |
Approx Shipping Weight, kg |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions (W×H×D mm) |
Internal volume, L |
Max | Min | |||||||||
| OVEN-500-1000 | ||||||||||||
| OVEN-500-1500 | ||||||||||||
| OVEN-500-2000 | ||||||||||||
| OVEN-500-4000 | ||||||||||||
| OVEN-700-1000 | ||||||||||||
| OVEN-700-1500 | ||||||||||||
| OVEN-700-2000 | 2000×715×700 | 1000 | 2324×1010×967 | 200 | 20 | 4400 W | 2.0 KW | 90–120 | 380 V | 280 | 2800×1900×1500 | 315 |
| OVEN-700-4000 | ||||||||||||
KEY FEATURES
- Precision temperature control
- Accurate temperature control and an integral overheat system
- Programmable ramp and soak
- Standard operating mode
- Program-operating mode with 19 pre-programmed options
- Two independent vacuum ports
- Very high thermal efficiency
- Powerful 2kW heating power
- Rugged build for production use
- Touch screen controller

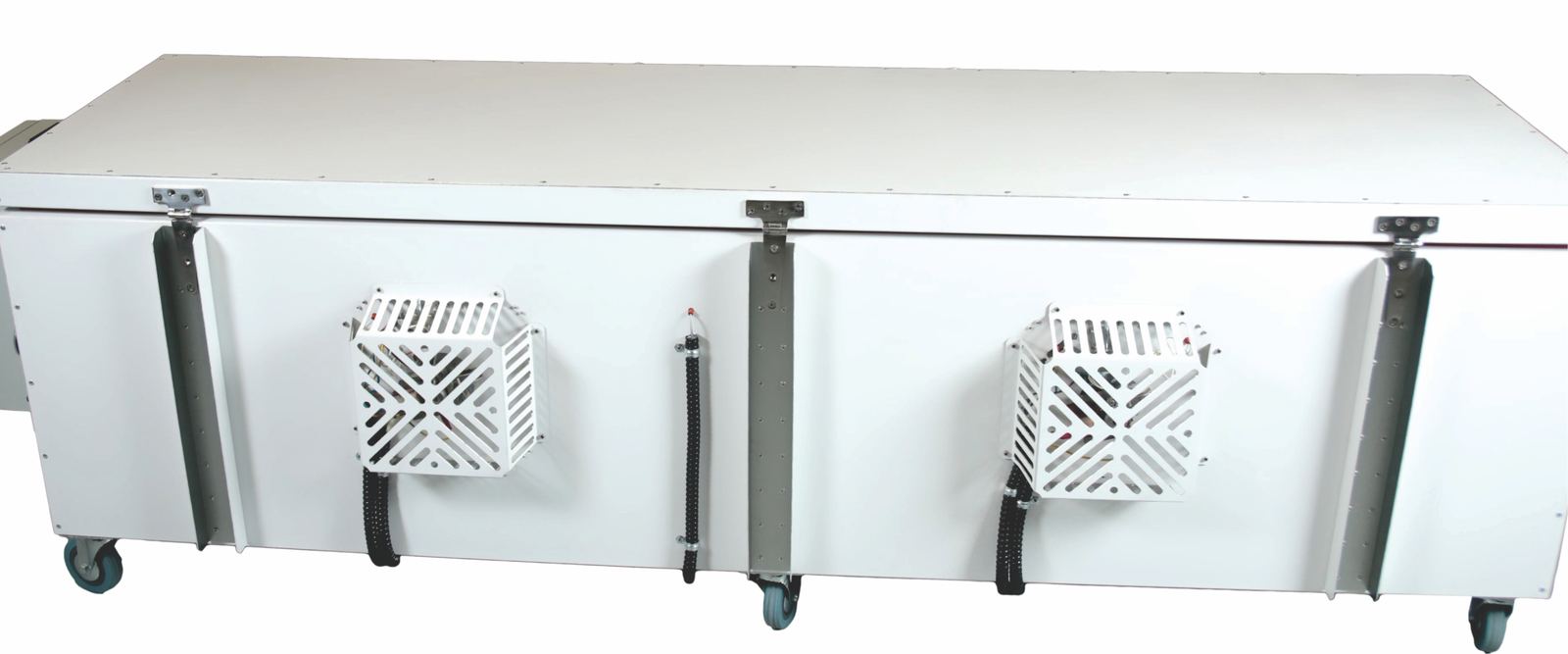

Designed, manufactured, and quality-assured in-house by UAVOS Inc., OVEN-700-2000 is a fully featured programmable industrial curing oven.
The oven is particularly suited for composites, including curing or post-curing laminates, prepregs, thermoplastics, castings, and moulds.
The precision-manufactured, sturdy design is engineered for demanding everyday production. Precision control makes the oven equally suited to laboratory or R&D use.
The oven delivers the highest standards of PID temperature control accuracy, utilising high-quality calibrated thermocouple temperature measurement coupled with effective fan-assisted airflow to minimise stratification.
Temperature, ramp, and soak are all fully programmable so recommended cure and post-cure cycles for different materials can be saved and run automatically for ultimate precision and consistency.
RECOMMENDED FOR
- Curing of prepreg composite parts
- Post-curing of high-temperature moulds and tooling
- Curing thermoplastics such as PP and PLA
- Curing silicones and casting resins
- Research and development/material testing
FEATURES&OPTIONS
Our industrial curing ovens have been designed from the ground up to offer all the functionality desirable in fully featured composites curing systems. Available in multiple sizes and configurations, they provide complete 'turn-key' solutions to precisely match your production requirements.
Touch Screen controller
Developed by UAVOS Inc., controller software provides the pre-programmed mode with 19 user-modifiable programs, a standard mode, and a user-intuitive interface controller.
The touchscreen controller allows users to intuitively create and run even the most complex ramp and dwell programs. The onscreen graphing overlays a live temperature trace of the internal temperature and the auxiliary sensor temperature onto the complete program profile.
Disclaimer
UAVOS Inc. is not responsible for the proper use and service of the product, or for the safeguarding of personnel or property, all of which are the user's duties.
Before using any of our products, users should familiarise themselves with the relevant technical and safety datasheets provided by UAVOS Inc.
Vacuum Valves
The unit includes two integral ports which can be supplied complete with optional gauge and valve assemblies for convenient connection of one or two separate vacuum lines into the oven.
Shipping Information
Our industrial curing ovens have been designed for worldwide shipping and can be delivered to almost any destination.
The ovens are always transported securely fastened to a shipping pallet and may require a forklift or taillift to unload.
