Weight
3.5 kg
Zoom
30x optical zoom lens + digital zoom, day camera
Resolution
1024×768 IR camera
Measurement range
50-1500 m optional laser rangefinder
Power consumption
60 W

Overview

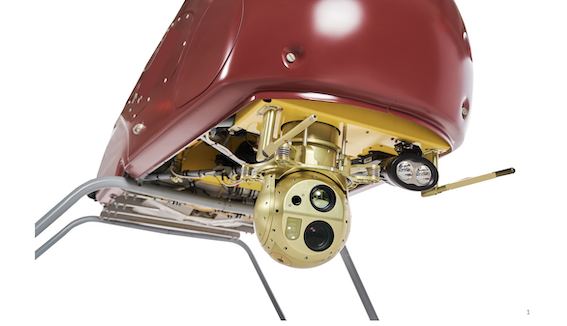

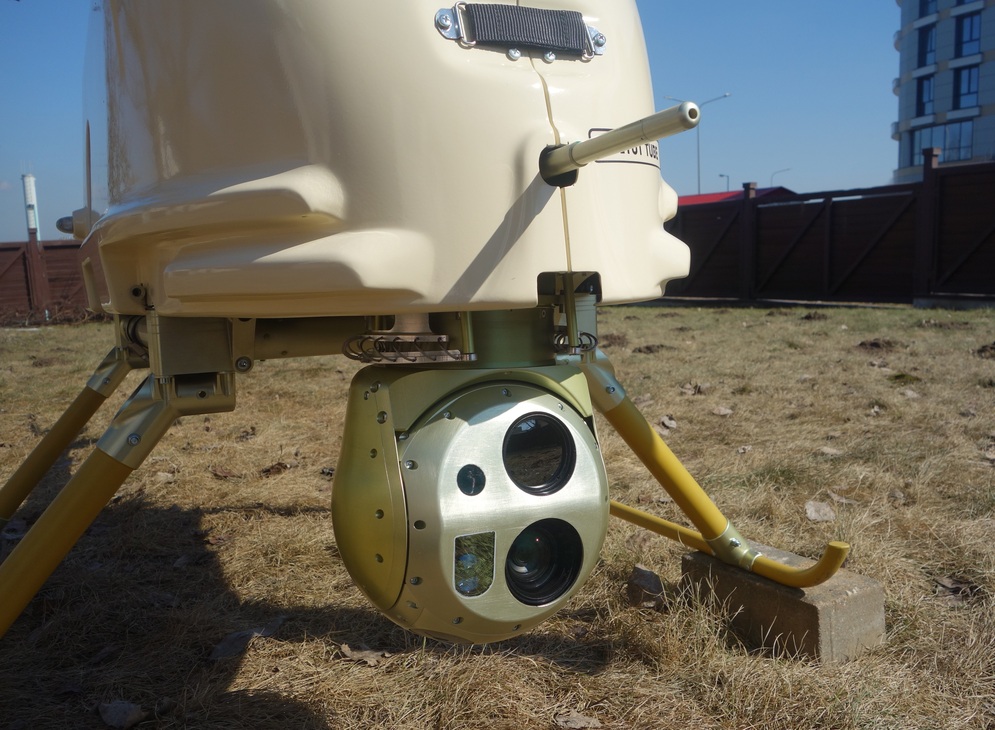

Gyro-stabilized two-axis gimbal with integrated 30x optical zoom Full HD (1080/60p) block camera, thermal LWIR 1024×768 camera, laser rangefinder 2500 m and onboard processing unit. The optoelectronic onboard unit is designed to perform complex missions and is ideally suited for a wide range of applications, including prospecting, surveillance, and mapping.

A dimensioned drawing of the gimbal

Features

  • Weight: 3.5 kg
  • Size: 323 x 200mm
  • Super rugged design: Precision machined aluminium structure
  • Antivibration frame
  • Environmental protection: IP65
  • Drying cartridge
  • Direct drive stabilization
  • Absolute encoder
  • Rotation limits: 360°+
  • Fully integrated video auto-tracker
  • Operational temperature range: -40 … +50°C
  • Supply voltage: 12-27V
  • Power consumption: 60W
  • High-quality onboard video record
  • Removable flash card

Sensors

Day camera

Sensor type
Global shutter
Video output
H.264/H265 RTSP Ethernet
Max field of view
50º
Resolution
1920×1080
Heated protective glass
Optional
Zoom
30x optical zoom lens + digital zoom
Effective elements
3.19 Mg Pix
Focus
auto
Lens
f=6.5 to 195.0mm

IR camera

Sensor type
LWIR
Video output
H.264/H265 RTSP Ethernet
Lens
50 mm f/1.4
Wavelength band
8-14 µm
Resolution
1024×768

Optional laser rangefinder

Total measurement range
50-1500 m
Measurement accuracy
≤ 0.5 m
Measurement frequency
1 … 10 Hz
Resolution
0.1 m
Transmitter
Diode laser
Laser classification
Laser Class 1
